Delivery time: 7-14 working days.

Shipping and payment terms.



Artikelnummer: RNS TM GFX v2 pro-1 Categorie:

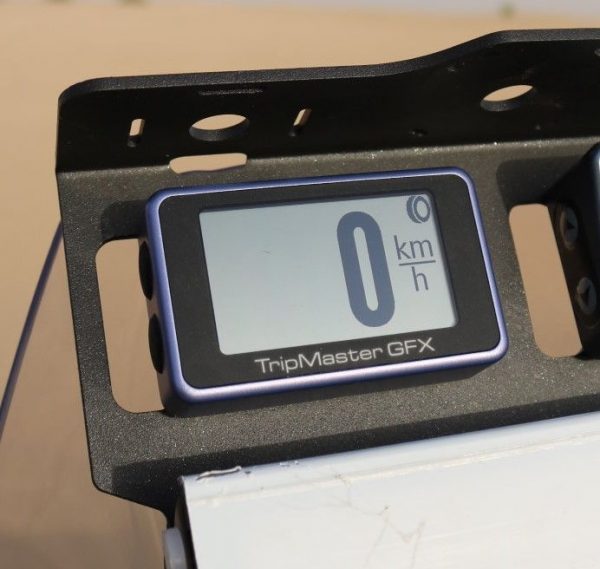

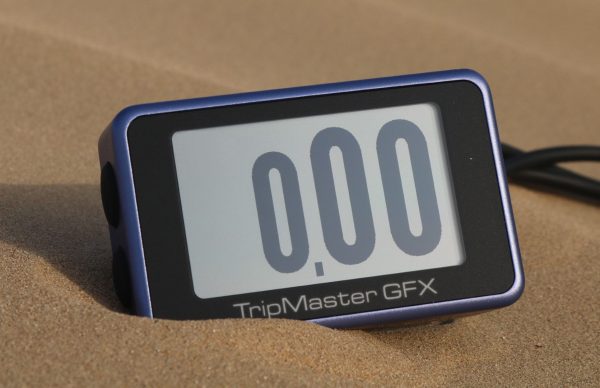

Productinformation “TripMaster GFX v2 Standard”


NOTE: This is the wheel sensor ONLY model.

It is compliant for races, such as Dakar, that do not allow devices with any sort of GPS functionality!


  • High contrast Transflective graphics LCD
    • 2.7” diagonal
    • 400×240 pixels, 172ppi
    • LED backlight
    • 180° viewing angle in X+Y axis
  • Perfect readability under bright sunlight and dust
  • CNC machined and anodised aluminium casing
  • 2 click-feedback rubber buttons on the left side for easy pressing even when wearing gloves
  • Matte framed lens to limit glare
  • Internal Lithium-Polymer self-charging backup battery
  • 3 colour-coded cables with M8 connectors
  • Water- and dustproof design
  • Smaller footprint than the traditional TripMaster XL4
  • Plug and Play with old cables, accessories and mounting positions
  • Wheel sensor ONLY


  • Wheel size adjustable in millimetres
  • Self-calibrating wheel size
  • Numerous modes individually configurable
    • 1x wheel trip viewable in 10m or 100m resolution
    • 1x wheel speed display
    • Statistics for maximum and average speeds
    • Stage moving timers
    • Combined screens for Trip and Speed together
  • Intuitive settings menu accessible from any mode
  • Transition pages with symbols and icons when switching between modes
  • Lifetime and resettable oil odometers
  • Invertible LCD image with dim backlight for pleasant reading in the dark
  • Software updateable via USB


  • Stainless-Steel Front wheel sensor (M8 screw type)
  • Neodymium Magnet
  • Power lead
  • Mounting parts: grommets, spacers and nuts


  • 84mm x 52mm x 22mm (WxHxD)
  • 250g
